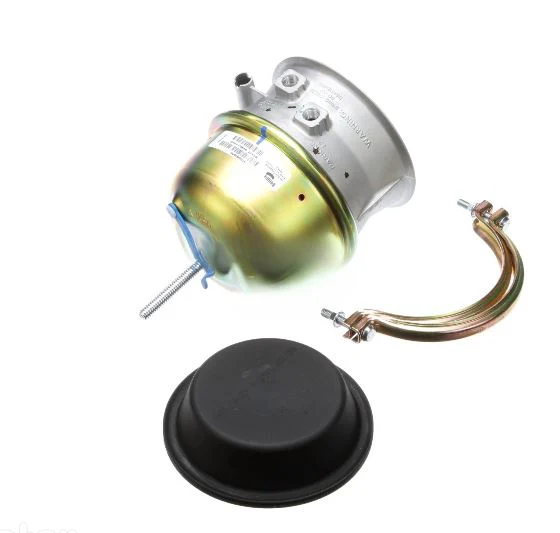

-65%Bendix T30/30 Spring Brake Piggyback Kit : NT3030ELS-K1T—
$49.95
$17.48The Story
Chamber Style: Double Diaphragm
Chamber Type / Size: T30/30
Service Chamber Joint Type: Double Clamp Band
Stroke: 3.00 IN (76 MM)
Push Rod Length (to Yoke Pin Center when Applicable) [IN] : 0.00 in
Service Port (11): 3/8-18 NPT
Parking Port (12): 3/8-18 NPT
Port Angle: 0°
Clamp Angle: 0°
Maximum Operating Temperature: 175 °F (79 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
Cautionary Note(s): Do not disassemble while park side is caged under pressure
Description
Chamber Style: Double Diaphragm
Chamber Type / Size: T30/30
Service Chamber Joint Type: Double Clamp Band
Stroke: 3.00 IN (76 MM)
Push Rod Length (to Yoke Pin Center when Applicable) [IN] : 0.00 in
Service Port (11): 3/8-18 NPT
Parking Port (12): 3/8-18 NPT
Port Angle: 0°
Clamp Angle: 0°
Maximum Operating Temperature: 175 °F (79 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
Cautionary Note(s): Do not disassemble while park side is caged under pressure
